This note explains the basic mental model behind IP addressing and subnets. The goal is not advanced subnetting speed, but a calm understanding of how hosts, networks, and masks relate to each other.

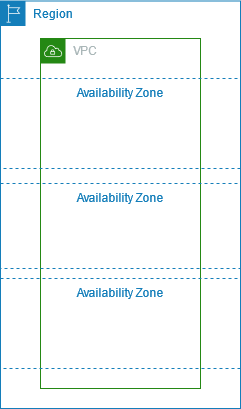

Official AWS diagram showing a network layout with multiple subnets and clear address boundaries.
Why this matters
IP addressing is one of the first filters in almost every networking problem
Linux, Windows, cloud, and firewall work all depend on basic subnet awareness
a lot of troubleshooting becomes easier once you can quickly tell whether two devices are even meant to talk directly
Environment / Scope
Item
Value
Topic
IPv4 addressing basics
Best use for this note
building a subnet mental model
Main focus
host, network, mask, gateway
Safe to practise?
yes, on any lab network
Key concepts
IP address - the address assigned to a host on a network
Subnet mask - what tells the system which part of the address is the network and which part is the host
Network address - the address that identifies the subnet itself
Host range - the usable addresses for devices inside the subnet
Broadcast address - the address used to talk to all hosts in the subnet
Mental model
Think about a subnet as a neighbourhood:
the network address is the name of the neighbourhood
the host addresses are the houses inside it
the default gateway is the way out to other neighbourhoods
Example:
Item
Example
IP address
192.168.1.10
Subnet mask
255.255.255.0
CIDR form
/24
Network
192.168.1.0
Usable hosts
192.168.1.1 to 192.168.1.254
Everyday workflow
Question
What to check
Is the host in the expected subnet?
IP address and mask
Can two hosts talk directly?
whether they are in the same subnet
Does traffic need routing?
whether destination is outside the local subnet
Is the gateway sensible?
whether the configured gateway is reachable on the local subnet
Common misunderstandings
Misunderstanding
Better explanation
”Same first three numbers means same network”
not always; the subnet mask decides that
”/24 means any home network”
it is common, but still just one subnet size
”Gateway can be anywhere”
the default gateway normally needs to be reachable from the local subnet
”If ping fails, the subnet is wrong”
subnetting is only one of several checks
Verification
Check
Expected result
ip addr or ipconfig
shows IP and subnet details
ip route or route print
shows default gateway and routes
Compare host addresses
confirms same subnet or routed path
Pitfalls / Troubleshooting
Problem
Likely cause
What to check
Host cannot reach local peers
wrong IP or mask
address, mask, duplicate addressing
Host cannot reach outside network
gateway missing or wrong
default route
Address plan feels confusing
weak network vs host mental model
rewrite subnet as network, range, gateway
Key takeaways
the subnet mask is what tells you whether hosts are local to each other
the default gateway matters when traffic leaves the local subnet
calm IP troubleshooting starts with address, mask, and route, not with guesswork
